ID: 100090300

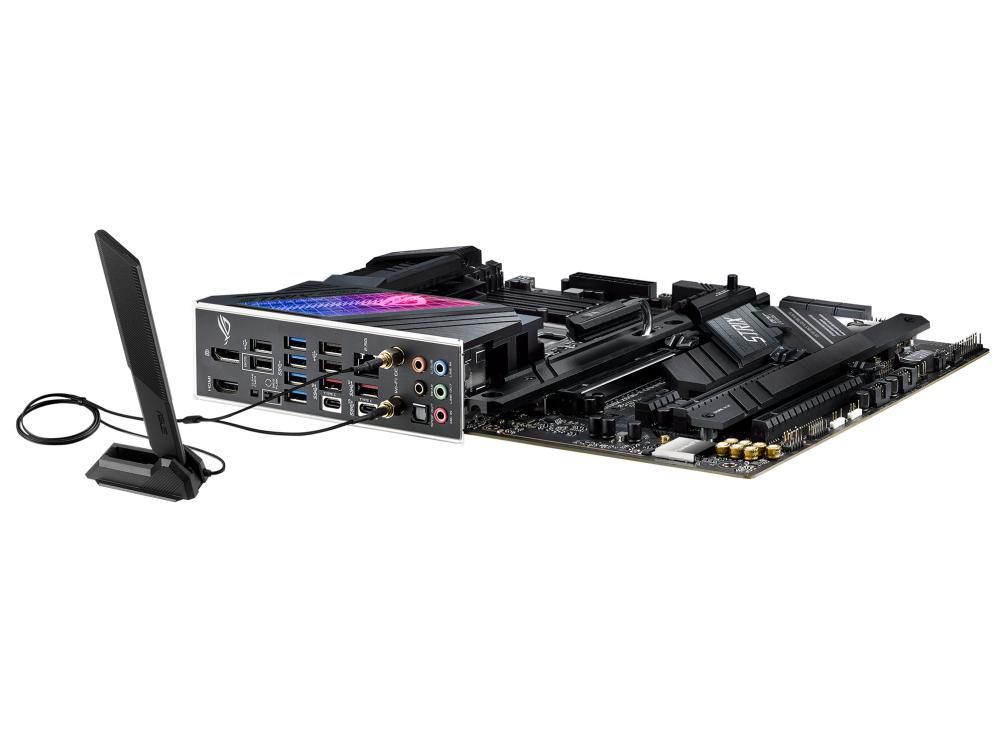

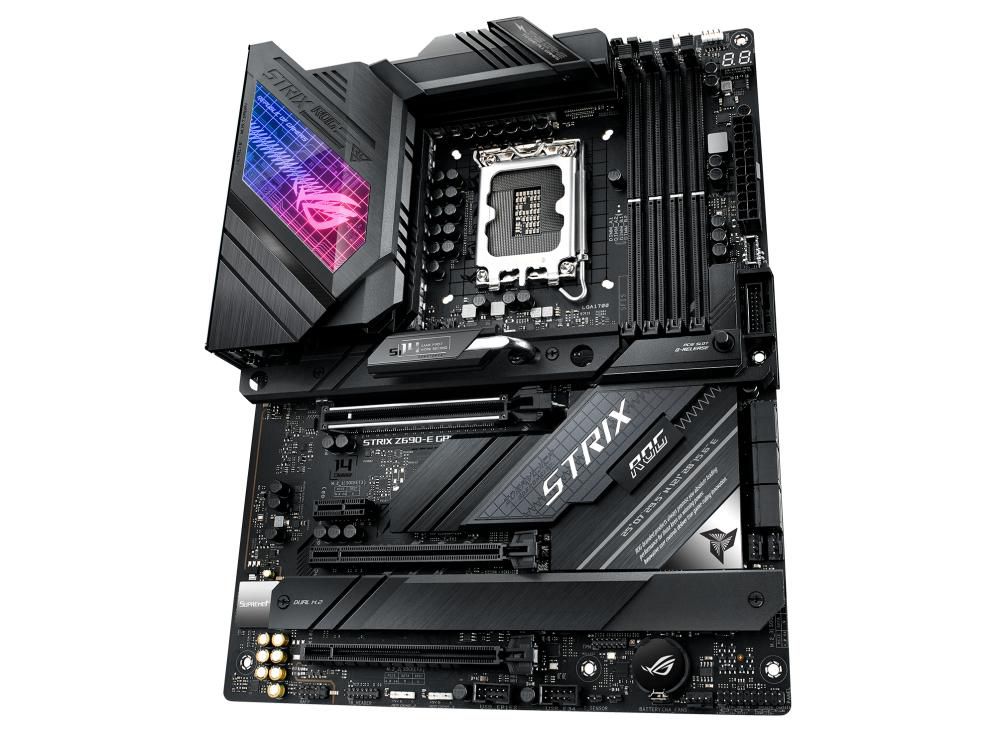

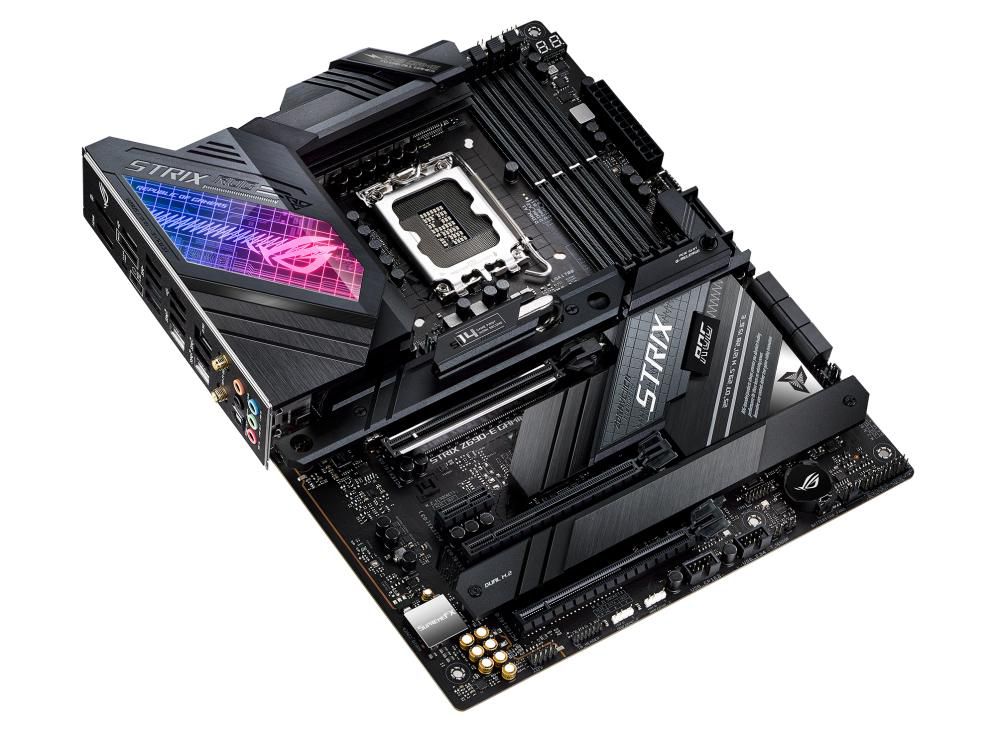

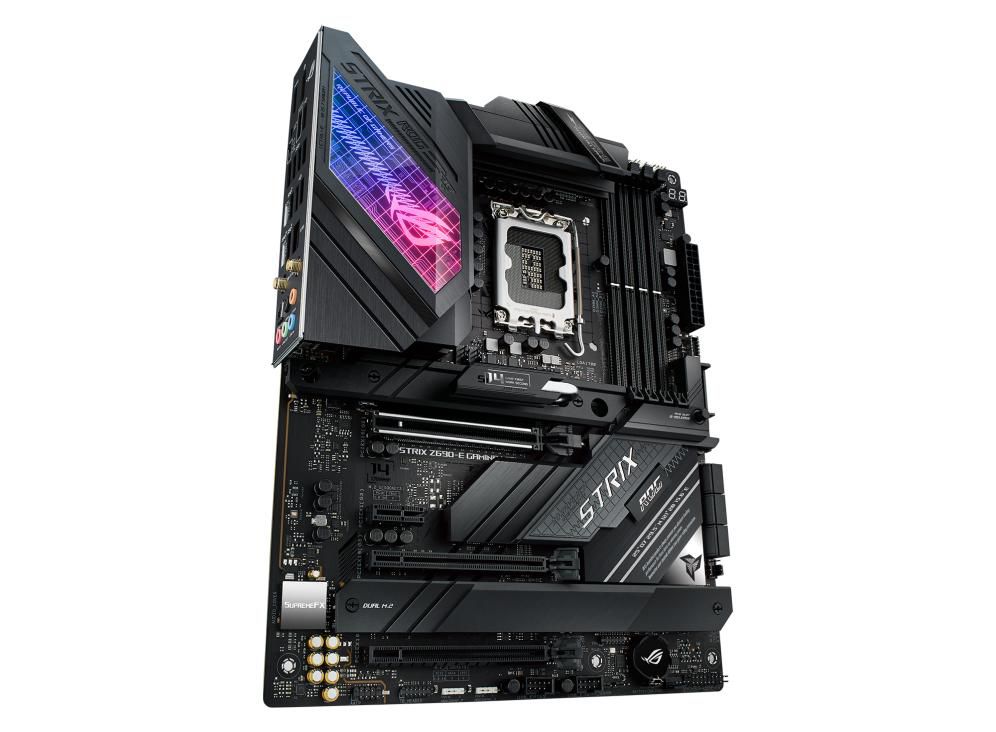

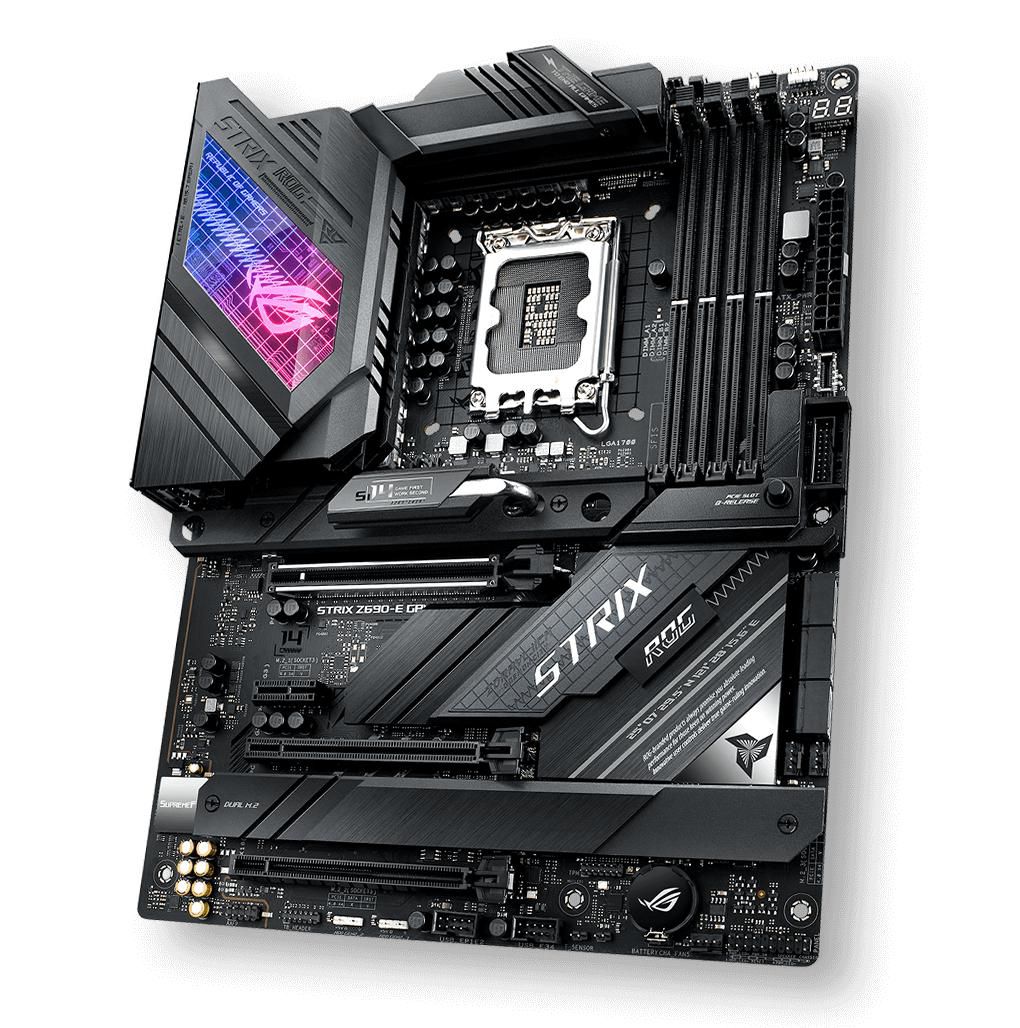

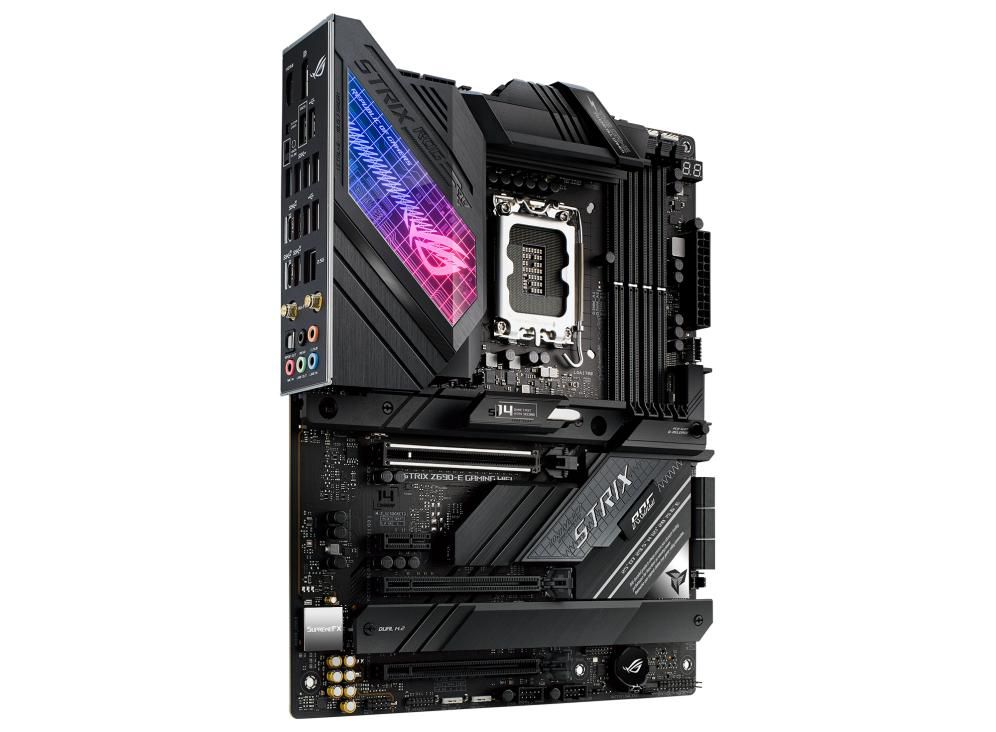

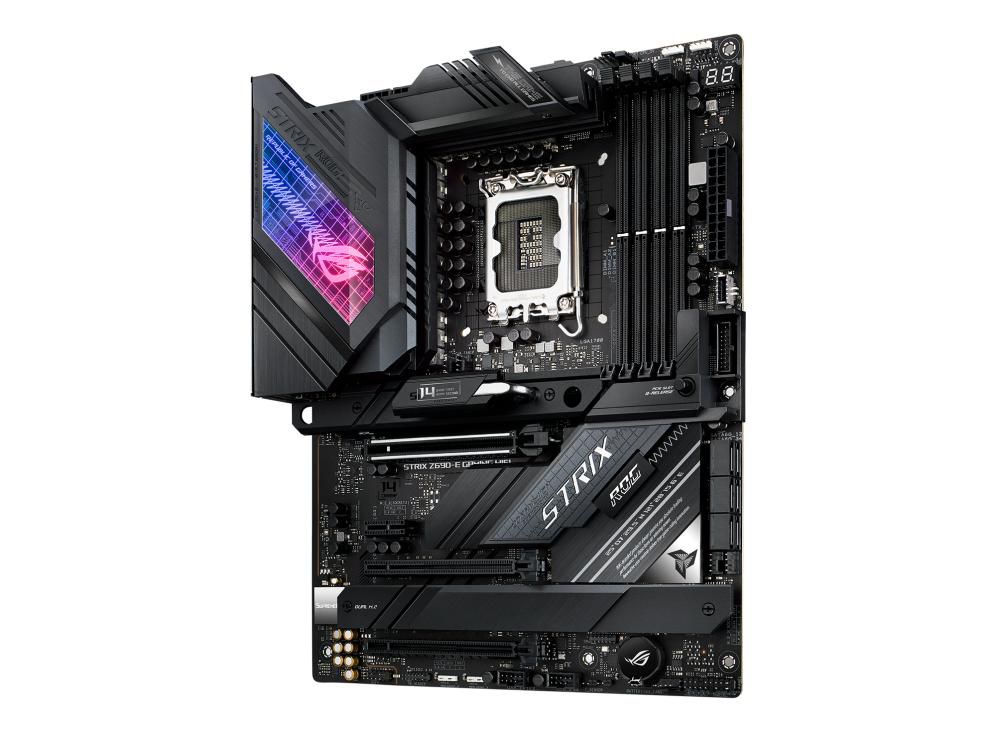

ROG STRIX Z690-E GAMING WIFI
EAN
4711081494638
Найкраща ціна
20 959 грн
з ПДВ
В наявності: 1-4 шт
Доставка: 2-4 тижні
ROG STRIX Z690-E GAMING WIFI ATX MB LGA1700 HDMI DP 6 x SATA
-
БрендAsus
BIOS
-
BIOS memory size256
-
BIOS typeUEFI AMI
Expansion slots
-
Mini PCI Express (Gen 1.x) slots0
-
Mini PCI Express (Gen 2.x) slots0
-
Mini PCI Express slot (full length)0
-
Mini PCI Express slot (half-length)0
-
Mini PCI Express slots0
-
Number of M.2 (M) slots3
-
PCI Express x16 (Gen 2.x) slots0
-
PCI Express x16 (Gen 3.x) @ dual x8/x8 mode slots0
-
PCI Express x16 (Gen 3.x) slots1
-
PCI Express x16 (Gen 4.x) slots1
-
PCI Express x16 (Gen 5.x) slots1
-
PCI Express x16 slots0
-
PCI Express x1 (Gen 2.x) slots0
-
PCI Express x1 (Gen 3.x) slots1
-
PCI Express x1 (Gen 4.x) slots0
-
PCI Express x1 slots0
-
PCI Express x4 (Gen 1.x) slots0
-
PCI Express x4 (Gen 2.x) slots0
-
PCI Express x4 (Gen 4.x) slots0
-
PCI Express x4 slots0
-
PCI Express x8 (Gen 1.x) slots0
-
PCI Express x8 slots0
-
PCI slots0
Features
-
Audio output channels7.1
-
Component forPC
-
Motherboard chipsetIntel Z690
-
Motherboard chipset familyIntel
-
Motherboard form factorATX
-
Product colourBlack
-
Windows operating systems supportedWindows 10/Windows 11
Graphics
-
On-board graphics cardNo
-
Parallel processing technology supportNot supported
Internal I/O
-
12V power connectorYes
-
ATX Power connector (24-pin)Yes
-
CPU fan connectorYes
-
EPS power connector (8-pin)Yes
-
Front panel audio connectorYes
-
Number of chassis fan connectors5
-
Number of COM connectors1
-
Number of SATA connectors0
-
Number of SATA II connectors0
-
Number of SATA III connectors6
-
Power fan connectorYes
-
RGB LED pin headerYes
-
Thunderbolt headers1
-
TPM connectorYes
-
USB 2.0 connectors2
-
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
-
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
-
USB 3.2 Gen 2x2 connectors1
Memory
-
ECCNo
-
ECC сompatibilityNon-ECC
-
Maximum internal memory192
-
Memory channelsDual-channel
-
Memory slots typeDIMM
-
Non-ECCYes
-
Number of memory slots4
-
Supported memory clock speeds4800/5000/5200/5400/5600/5800/6000/6200
-
Supported memory typesDDR5-SDRAM
-
Unbuffered memoryYes
Network
-
BluetoothYes
-
Bluetooth version5.2
-
Ethernet interface type2.5 Gigabit Ethernet
-
Ethernet LANYes
-
Top Wi-Fi standardWi-Fi 6E (802.11ax)
-
Wi-FiYes
-
Wi-Fi standards802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
Other features
-
mSATA ports quantity0
-
Weight1543
Packaging content
-
Cables includedSATA
-
Drivers includedYes
Processor
-
Compatible processor seriesIntel Pentium G/Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9
-
Processor manufacturerIntel
-
Processor socketLGA 1700
-
Supported processor socketsLGA 1700
Rear panel I/O ports
-
DisplayPort version1.4
-
DisplayPorts quantity1
-
DVI-D ports quantity0
-
DVI-I ports quantity0
-
Ethernet LAN (RJ-45) ports1
-
HDMI ports quantity1
-
HDMI version2.1
-
Headphone outputs1
-
Line-inYes
-
Microphone inYes
-
PS/2 ports quantity0
-
S/PDIF out portYes
-
USB4 Gen 2x2 ports quantity0
-
USB4 Gen 3x2 ports quantity0
-
USB 2.0 ports quantity4
-
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
-
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
-
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
-
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
-
USB 3.2 Gen 2x2 Type-C ports quantity1
-
VGA (D-Sub) ports quantity0
Storage controllers
-
RAID levels0/1/10/5
-
RAID supportYes
-
Supported storage drive interfacesM.2/SATA
-
Supported storage drive typesHDD & SSD
Vendor information
-
Brand NameAsus
-
Warranty1
